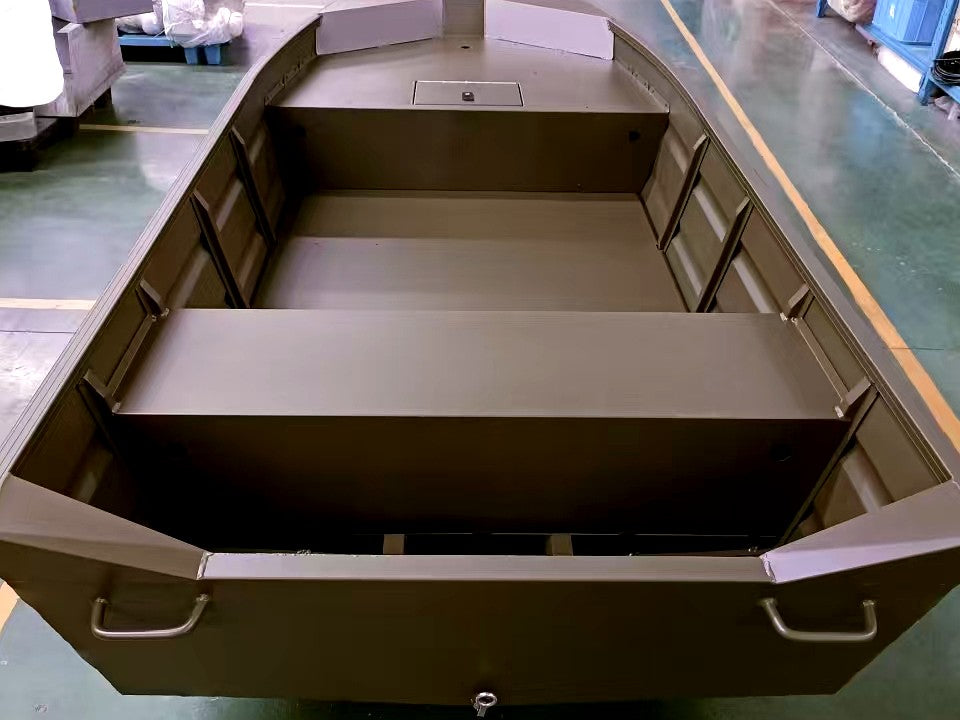

A bilge pump is easy to overlook in a small jon boat. The interior is open, the hull is simple, and many boats can be drained through a transom plug after they return to land. That does not mean water accumulation can be ignored while the boat is in use.
Rain, spray, leaking coolers, wet gear, and minor plumbing leaks can collect beneath the floor or around the stern. Added water reduces freeboard, changes trim, increases weight, and may move unexpectedly when the boat turns.
A properly installed bilge pump helps manage routine water accumulation. It does not repair a leaking hull, replace the drain plug, or make an overloaded boat safe. It is one part of a complete drainage and safety plan.
This guide explains how to choose, size, install, wire, and maintain a bilge pump for a jon boat.
Does a Jon Boat Need a Bilge Pump?
The answer depends on the boat’s layout and operating conditions.
A basic open jon boat without a floor may allow the operator to see and remove water easily. A boat with enclosed flooring, batteries, storage compartments, or a rear deck can hide water until a significant amount has accumulated.
A bilge pump becomes especially useful when the boat:
-
Remains in the water between trips
-
Operates in rain or frequent spray
-
Has a fixed floor or casting deck
-
Contains plumbing for a livewell
-
Carries heavy equipment near the stern
-
Is used far from a convenient landing
-
Has areas that cannot be reached with a bailer
-
Is stored outdoors with a cover
-
Operates in salt water
Even when an electric pump is installed, keep an independent way to remove water. A manual pump, bucket, or suitable bailer can still work if the battery or electrical system fails.
What a Bilge Pump Can and Cannot Do
A bilge pump is designed to remove water that collects in the lowest accessible part of the boat.
It can help manage:
-
Rainwater
-
Spray
-
Water brought aboard with passengers or equipment
-
Minor livewell or hose leakage
-
Small amounts of seepage
-
Water left after washing
It should not be relied upon to overcome:
-
A missing drain plug
-
Major hull damage
-
A failed through-hull fitting
-
Continuous heavy flooding
-
Water entering over the transom
-
Excessive spray caused by overloading
-
Unsafe operation in severe conditions
If the pump runs continuously, the correct response is to identify the source, reduce speed if appropriate, put on life jackets, and return to safety. A continuously running pump is a warning, not proof that the situation is under control.
Understanding Bilge Pump Capacity
Electric bilge pumps are usually rated in gallons per hour, or GPH. That number provides a useful comparison, but it does not necessarily represent the amount of water the installed system will move.
Published capacity may be measured under favorable conditions with:
-
Minimal vertical lift
-
Short, straight hose
-
Full operating voltage
-
No restrictive fittings
-
A clean pump and strainer
Actual output decreases as the pump must lift water higher or push it through longer hose, bends, small fittings, or a restricted outlet.
When comparing pumps, consider the complete installation rather than the label alone.
Ask:
-
How high must the pump lift water?
-
How long is the discharge hose?
-
How many bends are required?
-
What hose diameter does the pump specify?
-
Will the wiring deliver adequate voltage?
-
Is the pump intended for continuous or intermittent use?
-
Can the outlet remain safely above the waterline?
A larger pump connected to undersized hose or wiring may provide less useful performance than a properly installed smaller unit.
Do Not Size the Pump to Boat Length Alone
Boat length is one factor, but layout and use are equally important.
A simple 12-foot jon boat used on a pond may have different drainage needs from a 12-foot work boat with a deck, livewell, battery system, and enclosed stern compartment.
Consider:
-
Interior volume
-
Available freeboard
-
Normal passenger and equipment load
-
Frequency of rain and spray
-
Freshwater or saltwater operation
-
Distance from shore
-
Number of compartments
-
Battery capacity
-
Whether the boat remains unattended in the water
The pump must physically fit the available space while still allowing access to its screen, wiring, and hose connection.
For a custom aluminum boat, drainage paths and pump access are best planned before floors, decks, and storage compartments are installed.
Manual vs. Automatic Bilge Pump Operation
An electric bilge pump can be controlled manually, automatically, or through a combination of both.
Manual Control
A manually controlled pump operates when the user turns on a switch.
Advantages include:
-
Simple operation
-
Low standby power use
-
Direct control
-
Fewer automatic components
The weakness is equally clear: the pump does nothing if the operator does not notice the water or cannot reach the switch.
Manual control may be adequate for a simple open boat that is always attended and easily inspected.
Automatic Float Switch
A separate float switch turns the pump on when rising water lifts the float. When the water drops, the switch turns the pump off.
Float switches are straightforward, but they need enough clear space to move. Fishing line, leaves, mud, and loose wiring can block the mechanism.
Mount the switch so it responds to meaningful water accumulation without cycling repeatedly around a small puddle.
Electronic Water-Sensing Pump
Some automatic pumps use an electronic sensor instead of a moving float. This can reduce problems caused by mechanical obstruction.
Sensor designs vary. Some activate only when water reaches the sensing area, while others test periodically. The electrical consumption and behavior should be confirmed before selecting a unit for a small battery.
Combined Automatic and Manual Control
A common arrangement provides automatic operation plus a manual override.
This setup allows the pump to respond when water rises while still giving the operator direct control. It normally requires wiring that preserves automatic power even when the main accessory switch is off.
The circuit should be designed so the owner can understand and test both operating modes easily.
Finding the Correct Pump Location
Install the pump near the lowest point water reaches when the boat is floating in its normal loaded condition.
That point is often near the stern, but it is not always directly against the transom. Batteries, fuel, passengers, and the outboard can change trim.
Before final installation:
-
Place the boat in its normal operating attitude.
-
Identify where water naturally collects.
-
Confirm that ribs or framing do not trap water elsewhere.
-
Check access for cleaning and replacement.
-
Plan the discharge hose and wiring routes.
-
Make sure the pump will not interfere with the drain plug.
The pump screen should sit low enough to collect water without being pressed against debris. Most small pumps leave a shallow layer behind because their intake cannot remove every drop.
A sponge, bailer, or drain plug remains useful for removing residual water.
Multiple Low Points and Enclosed Compartments
Floors, ribs, storage boxes, and bulkheads can divide the hull into separate areas. A pump in the stern cannot remove water that is trapped farther forward.
Drainage openings must allow water to move toward the pump without weakening structural members or flotation compartments.
Do not drill through ribs, sealed spaces, or structural panels to create drainage paths without manufacturer approval.
If the boat contains several genuinely isolated compartments, each may require separate drainage or pumping. The solution should be incorporated into the layout rather than improvised after water becomes trapped.
Discharge Hose Size and Routing
Use the hose diameter specified for the pump. Reducing the diameter creates resistance and lowers output.
The hose should take the shortest practical route to a discharge fitting above the normal waterline. Avoid unnecessary bends, low sections that trap debris, and unsupported runs that can kink.
A good discharge route should:
-
Remain above the loaded waterline
-
Avoid spraying passengers or sensitive equipment
-
Drain without allowing water to return
-
Remain visible enough to confirm pump operation
-
Clear trailer bunks and tie-down hardware
-
Use smooth, unrestricted fittings
-
Remain protected from crushing and abrasion
Do not discharge water into another enclosed compartment.
The hull outlet should be installed only in an approved location. Its height must account for passengers moving to one side, stern squat during acceleration, and the boat’s fully loaded condition.
Preventing Backflow and Siphoning
Water can sometimes return through the discharge hose after the pump shuts off. An incorrect outlet or hose route can also create a siphon.
A rising loop may be required in some installations, while other systems may call for a vented loop. Follow the pump and boat manufacturers’ instructions for the exact layout.
Do not add a check valve automatically. Check valves introduce resistance and can become blocked by debris. Some pumps are not designed to operate through them.
If water flows back after shutdown, identify whether the cause is hose volume, outlet height, routing, or siphoning before adding another component.
Wiring a Bilge Pump Safely
A bilge pump operates in a wet environment, so electrical reliability is essential.
Use:
-
Marine-grade tinned copper wire
-
The wire gauge specified for the pump and circuit length
-
A correctly sized fuse or circuit breaker
-
Sealed, adhesive-lined heat-shrink connections
-
Corrosion-resistant terminals
-
Secure wire supports
-
A properly rated switch
The fuse should protect the positive conductor close to its power source. Do not install a larger fuse simply because the correct one opens repeatedly. Repeated fuse failure indicates a wiring, pump, or circuit problem.
Keep splices above the normal water level whenever possible. Support the harness so vibration cannot pull on the pump leads or rub the insulation against aluminum edges.
Automatic Wiring and Battery Isolation
An automatic pump often needs a dedicated fused supply so it can operate when other accessories are switched off.
That creates an important maintenance consideration: an automatic pump can discharge the battery if it cycles repeatedly because of rain, a leak, a blocked float, or a failing switch.
When the boat is stored:
-
Keep the battery properly charged.
-
Test automatic operation.
-
Check for parasitic loads.
-
Keep the cover and drainage system functional.
-
Inspect the boat after heavy rain.
-
Do not rely on the pump as the primary storage drain.
If the boat is on a trailer, remove the drain plug and position the hull according to the manufacturer’s storage instructions so rainwater can escape naturally.
Installing a Pump in an Aluminum Hull
Do not drive mounting screws through the bottom of an aluminum boat.
A pump can often be installed on a manufacturer-approved bracket, bonded mounting pad, removable plate, or existing structural surface. The correct method depends on the hull and pump.
When planning the mount:
-
Avoid penetrating the outer hull.
-
Preserve access to the pump screen.
-
Use compatible fasteners and adhesives.
-
Isolate dissimilar metals where required.
-
Keep wiring away from sharp aluminum edges.
-
Do not block the drain plug.
-
Avoid covering active corrosion.
-
Maintain drainage around ribs and braces.
Stainless steel fasteners and aluminum can create galvanic corrosion in wet conditions. Use the isolation, sealant, and fastening method approved for the boat.
Adding a Pump Beneath a Floor
A pump beneath a fixed floor must remain serviceable. If cleaning the screen requires removing seats, batteries, and permanent panels, maintenance will probably be delayed.
Provide an access hatch large enough to:
-
Remove the pump
-
Clean the intake
-
Test the float switch
-
Inspect wiring
-
Tighten hose clamps
-
Reach the drain plug
-
Examine the surrounding hull
The hatch should not direct rain or spray into the compartment. Any cover must remain secure while the boat is underway.
A removable floor system can simplify inspection, but it still needs clear drainage paths toward the pump.
Battery Capacity and Voltage Drop
Bilge pumps depend on adequate voltage. Long wire runs, undersized conductors, corroded terminals, and weak batteries reduce pump performance.
A pump may appear to run normally while moving much less water than expected.
Inspect for:
-
Slow motor sound
-
Warm wiring or switches
-
Discolored terminals
-
Corroded connectors
-
Large voltage difference between the battery and pump
-
Reduced output when other accessories operate
The battery must also support the outboard starting system and other electronics. A small battery should not be selected without accounting for pump demand and the possibility of automatic cycling.
Testing the Installation
Do not wait for an emergency to discover that the pump or float switch does not work.
After installation:
-
Add clean water to the bilge area in a controlled setting.
-
Confirm automatic activation.
-
Observe the discharge stream.
-
Check every hose connection for leakage.
-
Verify that water does not siphon back.
-
Test the manual override.
-
Confirm that wiring remains cool.
-
Make sure the pump shuts off correctly.
-
Inspect the hull outlet from outside.
-
Remove the remaining test water.
Do not run a pump dry longer than its manufacturer permits.
Repeat the test before trips and after wiring changes, battery replacement, long storage, or freezing weather.
Bilge Pump Maintenance
A small amount of debris can restrict a compact pump significantly.
Inspect and clean:
-
Intake screen
-
Impeller area
-
Float-switch pivot
-
Electronic sensor surface
-
Discharge hose
-
Hull fitting
-
Electrical terminals
-
Fuse holder
-
Hose clamps
Leaves, fishing line, carpet fibers, mud, and plastic packaging are common sources of obstruction. Keep loose equipment from reaching the intake.
After saltwater use, rinse accessible components with fresh water. Confirm that mounting hardware and electrical connections show no corrosion.
Replace cracked hose, brittle wiring, damaged seals, and unreliable switches promptly.
Always Carry a Backup
An electric bilge pump can fail because of:
-
Battery discharge
-
Blown fuse
-
Corroded wiring
-
Blocked intake
-
Broken hose
-
Failed switch
-
Motor damage
Carry an independent backup appropriate for the boat. Options include a manual hand pump, bucket, or bailer.
The backup must remain accessible when the boat contains water. Equipment stored beneath a heavy floor panel or buried under gear may not be useful when needed.
Required safety equipment varies by location and boat configuration, so confirm the rules that apply where the boat will operate.
Bilge Pumps and Trailer Storage
A bilge pump should not be the primary method of removing rainwater while a jon boat is stored on its trailer.
A properly matched aluminum boat trailer should support the hull while allowing it to be positioned for drainage according to the boat manufacturer’s instructions.
During storage:
-
Remove the drain plug.
-
Keep the bow at the appropriate height for drainage.
-
Use a supported cover that sheds water.
-
Keep drainage paths open.
-
Disconnect or maintain the battery as appropriate.
-
Inspect the boat after storms.
-
Do not let standing water remain beneath the floor.
Remember to reinstall the drain plug before the next launch. Attach a visible reminder to the steering position, ignition key, or launch checklist.
Common Bilge Pump Mistakes
Avoid these frequent errors:
-
Choosing capacity from boat length alone
-
Assuming the advertised GPH equals installed output
-
Using undersized discharge hose
-
Placing the outlet too close to the waterline
-
Installing unnecessary restrictive fittings
-
Mounting the pump where water does not collect
-
Blocking access beneath a permanent floor
-
Wiring without proper circuit protection
-
Leaving electrical splices in standing water
-
Drilling mounting screws through the hull bottom
-
Relying on the pump to compensate for a leak
-
Storing the boat with the drain plug installed
-
Failing to carry a manual backup
-
Testing the pump only by listening to the motor
A running pump is not necessarily a pumping system. Water must reach the intake and exit the boat at an acceptable rate.
Frequently Asked Questions
What size bilge pump does a jon boat need?
Select capacity according to the boat’s layout, operating conditions, discharge height, hose length, and available electrical system. Allow for the fact that installed output will normally be lower than the pump’s unrestricted rating.
Does an open jon boat need an automatic bilge pump?
Not every open jon boat requires one, but automatic operation can be useful when water may collect unnoticed or when the boat remains in the water. A manual override and independent backup are still valuable.
Where should the bilge pump be mounted?
Mount it at the lowest accessible point where water collects when the boat is floating in its normal loaded attitude. Keep it accessible for cleaning and avoid drilling through the outer hull.
Can a bilge pump drain all the water from a jon boat?
Usually not. The intake sits slightly above the hull surface, so a shallow amount remains. Use the drain plug on land and a sponge, bailer, or manual pump for residual water.
Should a bilge pump be connected directly to the battery?
An automatic circuit may require a dedicated fused battery supply, while manual control may use a switched circuit. Follow the pump manufacturer’s wiring diagram and protect every positive conductor correctly.
Final Takeaway
A bilge pump is most dependable when it is simple, accessible, and tested regularly. Plan drainage before installing floors or storage, use components suited to a wet aluminum boat, and never rely on an electric pump to correct overloading, poor freeboard, or an active leak.
For help planning an aluminum boat layout, drainage system, or custom equipment installation, contact Black Series Marine.
