Boat trailer brakes help the tow vehicle slow and control the combined weight of the trailer, boat, motor, fuel, batteries, and equipment. They become especially important during emergency stops, long downhill grades, wet-road driving, and repeated towing with a heavily loaded boat.
Choosing boat trailer brakes involves more than deciding whether the trailer should have them. Buyers must compare disc and drum designs, choose an actuation system, determine how many axles require brakes, and select components suitable for freshwater or saltwater immersion.
The correct system depends on the trailer's gross vehicle weight rating, actual operating weight, axle configuration, tow vehicle, launch environment, and applicable laws.
Why Boat Trailer Brakes Matter
A tow vehicle's braking system is designed primarily around the vehicle's own weight rating. Adding a loaded boat trailer increases the mass that must be controlled without automatically increasing the vehicle's braking capability.
Trailer brakes provide braking force at the trailer wheels. A properly specified system can help:
-
Reduce the load placed on the tow vehicle's brakes
-
Improve control during hard stops
-
Limit brake fade on long grades
-
Reduce pushing from the trailer
-
Improve stability on wet or uneven roads
-
Control the trailer if a compatible breakaway system is activated
Trailer brakes do not increase the tow vehicle's published towing capacity. The vehicle, receiver, hitch ball, coupler, tires, trailer, and braking system must all be rated for the actual load.
Are Brakes Required on a Boat Trailer?
Trailer-brake laws are not identical across the United States. Requirements can depend on registered weight, gross vehicle weight rating, actual weight, axle count, and the state where the trailer is registered or operated.
Some jurisdictions require brakes after a particular trailer weight. Others may specify brakes on every axle, a breakaway device, or a system that the driver can control from the tow vehicle.
The National Highway Traffic Safety Administration explains that trailers equipped with hydraulic brakes must use compliant brake hoses and fluids, while states may establish additional operating requirements. Buyers should verify the current rules with the appropriate motor-vehicle agencies for every state in which the trailer will be used.
Legal compliance is only the minimum consideration. A trailer may benefit from brakes even when its weight falls below a local legal threshold. Base the decision on the complete towing combination and operating conditions, not only the smallest system permitted by law.
Disc vs Drum Boat Trailer Brakes
Disc and drum brakes both create friction to slow the trailer, but they manage heat, water, corrosion, and maintenance differently.
Disc Brakes
Disc brakes use a caliper to squeeze brake pads against a rotor attached to the hub. Their open construction makes the braking surfaces relatively easy to inspect, rinse, and drain after launching.
Potential advantages include:
-
Strong, consistent braking
-
Effective heat dissipation
-
Easier visual inspection
-
Better water drainage
-
Straightforward pad replacement
-
Good suitability for frequent marine use
Disc brakes are commonly selected for heavier boat trailers and repeated saltwater launching. Corrosion resistance still depends on the rotor, caliper, brackets, fasteners, and protective coatings used.
A standard automotive-style component should not be assumed suitable for boat-trailer immersion. Verify that the entire brake assembly is designed for the intended marine environment.
Drum Brakes
Drum brakes use curved shoes that press against the inside of a rotating drum. The enclosed design protects internal components from some road debris, but it can also retain water and contaminants after submersion.
Potential advantages include:
-
Lower initial component cost in some applications
-
Strong braking for the component size
-
Compatibility with hydraulic or electric actuation
-
Wide availability of replacement parts
Drum brakes can work well on freshwater trailers when maintained correctly. However, internal inspection usually requires removing the drum, and trapped salt or moisture can accelerate corrosion.
Which Is Better for a Boat Trailer?
For frequent saltwater use, hydraulic disc brakes are often the practical preference because they drain more readily and are easier to rinse and inspect.
For occasional freshwater launching, drum brakes may provide an economical solution when the trailer is properly stored and serviced. The final choice should account for axle rating, required braking capacity, replacement-part availability, and the maintenance the owner is prepared to perform.
How Boat Trailer Brakes Are Activated
The brake mechanism and the actuation method are separate choices. A trailer may have disc brakes operated by a surge actuator or an electric-over-hydraulic system. Drum brakes can be operated hydraulically or electrically, depending on their design.
Surge Brakes
Surge brakes use a sliding actuator built into the trailer tongue. When the tow vehicle slows, the trailer moves forward against the actuator. The actuator applies pressure to a master cylinder, sending hydraulic pressure to the wheel brakes.
Dexter describes this system as using the trailer's forward push during deceleration to automatically synchronize braking with the tow vehicle.
Advantages of Surge Brakes
-
Automatic operation without a conventional in-cab brake controller
-
Simple connection between different compatible tow vehicles
-
Common use on marine trailers
-
Available for both disc and drum systems
-
Braking force responds to trailer push
Limitations of Surge Brakes
-
The driver generally cannot apply the brakes independently from the cab
-
The actuator and master cylinder require inspection and maintenance
-
Reversing may require a mechanical lockout or electric reverse solenoid
-
Improper coupler movement can affect brake response
-
Descending grades and unusual traction conditions may require careful speed management
A surge actuator must be matched to the type of wheel brake. Disc and drum systems can require different hydraulic pressures, so components should not be mixed without manufacturer approval.
Electric-Over-Hydraulic Brakes
An electric-over-hydraulic system uses an electric signal from a compatible in-cab controller to operate a hydraulic actuator on the trailer. The actuator creates pressure for hydraulic disc or drum brakes.
Potential advantages include:
-
Proportional brake response
-
Driver control from the tow vehicle
-
Rapid hydraulic pressure application
-
Compatibility with heavy tandem- or triple-axle trailers
-
Ability to apply trailer brakes independently when the controller supports it
Potential disadvantages include:
-
Higher initial cost
-
More electrical and hydraulic components
-
Need for a compatible brake controller and wiring connection
-
Greater diagnostic complexity
-
A dedicated trailer battery may be required for breakaway operation
Dexter's electric-over-hydraulic actuators are offered for both disc and drum applications and work with many electronic brake controllers. Compatibility must be confirmed among the actuator, controller, brake type, tow vehicle, and trailer wiring.
Electric Drum Brakes
Traditional electric drum brakes use electromagnets inside the brake assembly. A controller in the tow vehicle varies the current supplied to the magnets, changing the trailer's braking force.
Electric drum brakes are common on utility and travel trailers, but marine immersion adds additional considerations. Wiring, magnets, connections, backing plates, and internal hardware must be intended for the environment and maintained according to the manufacturer's instructions.
Do not assume that a standard electric drum assembly can be repeatedly submerged. If electric brakes are being considered for a boat trailer, confirm that every component is approved for marine use and follow the manufacturer's launch procedures.
Brakes on One Axle or Both Axles?
A tandem-axle trailer may be equipped with brakes on one axle or both, depending on its rating, design, and legal requirements.
Brakes on both axles can provide:
-
More total braking capacity
-
Better distribution of braking force
-
Reduced thermal load on each brake assembly
-
More controlled braking for a heavy boat
-
Additional braking capability if one wheel assembly develops a problem
However, adding brakes to another axle also increases component cost and maintenance. The actuator, hydraulic system, controller, and breakaway system must be sized for the complete brake arrangement.
Some states require brakes on every axle for trailers above certain ratings. Confirm the requirements before ordering rather than assuming that one braked axle is sufficient.

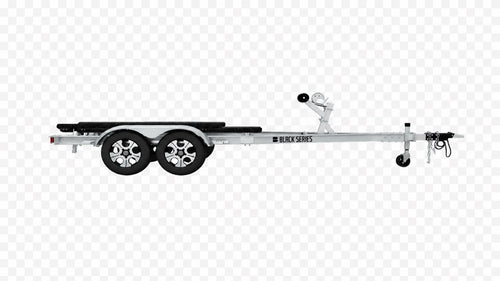

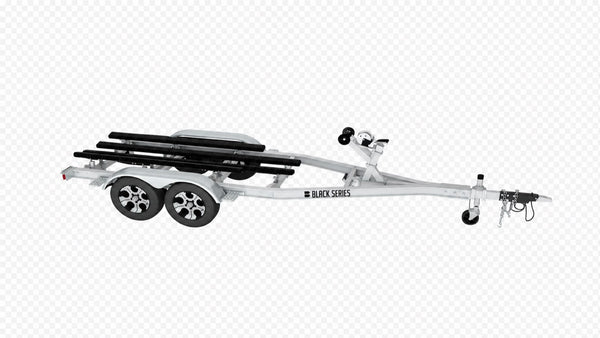

The Black Series Marine aluminum boat trailer is a 25-foot tandem-axle model with a listed brake axle, tandem torsion axles, approximately 9,390 pounds of GVWR, and 7,716 pounds of maximum payload. Final brake configuration and legal road-use requirements must be confirmed for the completed trailer and intended operating area.
Choosing Brakes for Freshwater and Saltwater
Freshwater Use
Freshwater is generally less aggressive than saltwater, but it can still enter hubs, drums, calipers, electrical connectors, and actuator components.
For freshwater use, focus on:
-
Marine-compatible components
-
Effective drainage
-
Accessible inspection points
-
Reliable seals and wiring
-
Replacement parts available in your travel area
-
A maintenance schedule appropriate for launch frequency
A freshwater-only trailer still faces rain, road salt, mud, and winter chemicals. Storage conditions may be as important as the type of water at the launch ramp.
Saltwater Use
Saltwater leaves chloride deposits that accelerate corrosion. A saltwater brake package should use corrosion-resistant materials and finishes throughout the system, not only on the most visible components.
Depending on the manufacturer, suitable options may include stainless steel, coated steel, aluminum, or corrosion-resistant plated components. The correct combination depends on the specific brake system.
After every saltwater launch:
-
Rinse the brakes and undercarriage thoroughly with fresh water.
-
Use an installed flushing system if the brake manufacturer provides one.
-
Inspect hydraulic lines, fittings, calipers, rotors, and fasteners.
-
Check electrical connectors and grounds.
-
Allow the system to drain and dry before storage.
Do not spray lubricants onto rotors, pads, shoes, or drums. Friction surfaces must remain free of oil and grease.
Avoid Submerging Hot Brakes
Brakes generate heat during highway driving and long descents. Immediately backing a trailer with hot brakes into cold water creates rapid temperature change in rotors, drums, hubs, and bearings.
Dexter advises allowing trailer brakes to cool after long trips or downhill towing before submerging them. A short staging period at the launch ramp also gives the operator time to prepare lines, remove transport straps, install the drain plug, and inspect the trailer.
Never block the ramp while waiting. Complete cooling and preparation in the designated staging area.
What Is a Breakaway System?
A breakaway system is designed to apply the trailer brakes if the trailer separates from the tow vehicle. A cable attached independently to the tow vehicle activates the system when separation pulls the cable.
Depending on the brake design, a breakaway setup may include:
-
Breakaway switch or surge-actuator mechanism
-
Dedicated battery
-
Battery charger
-
Wiring and connectors
-
Hydraulic or electric actuator
-
Correctly routed activation cable
The cable should not be wrapped around the safety chains or attached to a removable hitch component. Follow the trailer and tow-vehicle manufacturers' attachment instructions.
A breakaway system does not replace safety chains, a correctly sized coupler, or proper hitch inspection. Each component has a separate role.
How to Inspect Boat Trailer Brakes Before Buying
Whether buying a new or used trailer, inspect the complete braking system.
Check for:
-
Fluid leaks at the actuator, lines, hoses, calipers, and wheel cylinders
-
Severe rotor scoring or corrosion
-
Uneven pad or shoe wear
-
Damaged or kinked brake lines
-
Loose mounting hardware
-
Corroded electrical connectors
-
A sticking surge coupler
-
Correct reverse-lockout operation
-
Breakaway-system condition
-
Clear component ratings and identification
-
Maintenance and replacement-part documentation
On a used trailer, surface appearance does not reveal the entire condition. Drums may hide internal corrosion, and hydraulic fluid can absorb contamination over time. A qualified trailer technician should inspect an unfamiliar system before regular towing.
Matching the Brake System to Your Load
Start with the trailer's actual loaded weight, not the empty trailer weight or the boat's dry hull weight.
Include:
-
Hull
-
Outboard and controls
-
Fuel
-
Batteries
-
Anchors
-
Electronics
-
Fishing or hunting equipment
-
Water carried in tanks or livewells
-
Accessories installed after purchase

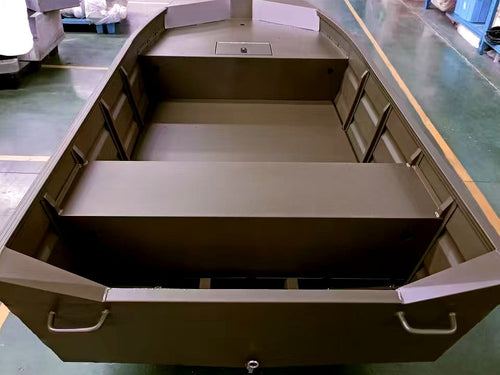

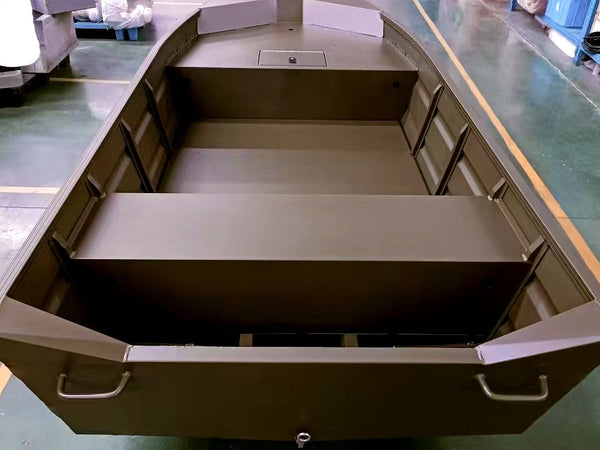

An aluminum utility boat may be relatively light when empty, but its complete operating package can be substantially heavier. The brake system, axles, tires, coupler, and trailer structure must support the same realistic load calculation.
Preserve capacity margin and verify that the tow vehicle is approved for the trailer's actual weight and brake-actuation method.
Common Boat Trailer Brake Mistakes
Assuming the Tow Vehicle Can Handle All Braking
A powerful truck does not eliminate trailer-brake requirements. Ratings, laws, stopping distance, and control still apply.
Ordering Brakes Without Checking State Laws
Brake thresholds and axle requirements can vary. Verify regulations where the trailer will be registered and operated.
Mixing Disc and Drum Components
Actuators and hydraulic pressures may differ between brake types. Use a complete, compatible system approved by the manufacturer.
Ignoring the Reverse Lockout
Hydraulic disc brakes may engage when backing unless the system has the correct reverse-lockout arrangement. Confirm operation before arriving at a busy ramp.
Neglecting Brakes Between Launches
Immersion, salt, heat, and storage continue to affect the system even when braking feels normal. Inspection should be based on time and use, not only obvious failure.
Frequently Asked Questions
Are disc brakes better than drum brakes for boat trailers?
Disc brakes are often preferred for frequent marine use because they drain, cool, and rinse more easily. Drum brakes can still be effective, particularly for freshwater use, when properly maintained.
What are surge brakes on a boat trailer?
Surge brakes use a sliding tongue actuator. As the trailer pushes toward the slowing tow vehicle, the actuator creates hydraulic pressure that applies the trailer brakes.
Do tandem-axle boat trailers need brakes on both axles?
It depends on trailer weight, component ratings, configuration, and state law. Brakes on both axles can improve braking distribution, but the complete system must be properly engineered.
Can electric brakes be submerged?
Only use electric brake components approved by their manufacturer for the intended marine environment. Standard electric drum brakes should not automatically be assumed suitable for repeated immersion.
How often should boat trailer brakes be serviced?
Follow the brake, axle, and trailer manufacturers' schedules. Saltwater trailers and frequently used trailers generally require more frequent rinsing and inspection than equipment used occasionally in freshwater.
Final Takeaway
Do not treat brakes as an accessory added after the trailer has been selected. Brake type, actuation, axle configuration, payload, and marine environment should be planned together.
Before ordering, document your boat's loaded weight, tow vehicle, launch conditions, travel routes, and local brake requirements. Then contact Black Series Marine to confirm the appropriate trailer and brake configuration for your boat.
