A boat trailer coupler creates the mechanical connection between the trailer tongue and the tow vehicle's hitch ball. The connection must use the correct ball diameter, carry the trailer's full rating, lock securely, and remain compatible with the trailer frame and braking system.
A coupler that appears to close is not necessarily a correct fit. An undersized ball can leave excessive clearance, while an oversized ball may prevent the latch from fully engaging. Wear, corrosion, incorrect adjustment, or incompatible replacement parts can also allow a trailer to separate from the vehicle.
This guide explains how to choose a boat trailer coupler, identify the required hitch ball size, compare mounting styles, and inspect the complete connection before towing.
What Is a Boat Trailer Coupler?
The coupler is the socket-shaped component installed at the front of the trailer tongue. It fits over the hitch ball and uses a latch or locking mechanism to capture the ball inside the socket.
A complete towing connection may include:
-
Tow-vehicle receiver
-
Ball mount
-
Hitch ball
-
Trailer coupler
-
Coupler safety pin or lock
-
Safety chains
-
Breakaway cable
-
Electrical connector
-
Surge-brake actuator, when equipped
Each component performs a different function. A coupler does not replace the safety chains, and a coupler lock does not increase the towing capacity of an underrated hitch.
Common Boat Trailer Hitch Ball Sizes
The hitch ball diameter must match the size marked on the coupler or specified by the coupler manufacturer.
Common sizes include:
-
1-7/8 inches
-
2 inches
-
2-5/16 inches
-
50 millimeters on certain equipment
Do not estimate ball size from appearance. A 1-7/8-inch and 2-inch ball can look similar when installed, but the difference is enough to create an unsafe connection.
A 50-millimeter ball is also not identical to a 2-inch ball. Some approved multi-fit couplers are designed for more than one size, but a standard single-size coupler should never be treated as interchangeable.
Look for the required size on:
-
Coupler stamping or label
-
Surge-actuator identification plate
-
Trailer certification documents
-
Owner's manual
-
Manufacturer's specification
If the marking is missing or unreadable, identify the exact coupler model before towing.
How Coupler Size Relates to Trailer Weight
Ball diameter and coupler capacity are separate specifications.
Two couplers designed for the same 2-inch hitch ball may have very different gross vehicle weight ratings. Similarly, a larger ball does not automatically make the complete trailer connection capable of carrying more weight.
The coupler rating should meet or exceed the trailer's certified GVWR. The hitch ball, ball mount, receiver, and tow vehicle must also have sufficient ratings.
For example, a trailer with a 7,500-pound GVWR should not use a coupler rated for only 5,000 pounds, even if the coupler fits the correct ball.
Always compare:
-
Trailer GVWR
-
Coupler rating
-
Hitch ball rating
-
Ball-mount rating
-
Receiver rating
-
Tow-vehicle rating
-
Maximum tongue weight for each component
The lowest rating controls the usable capacity of the system.
Hitch Ball Shank Size Matters
A hitch ball is secured to the ball mount through a threaded shank. The shank diameter must match the mounting hole, and the shank must provide the required thread engagement after passing through the ball-mount platform.
An undersized shank in an oversized hole can move under load. An incompatible or improperly tightened ball can loosen, damage the mount, or separate.
Confirm:
-
Ball diameter
-
Ball capacity
-
Shank diameter
-
Shank length
-
Ball-mount platform thickness
-
Required washer and nut
-
Manufacturer-specified installation torque
Hitch-ball installation can require substantial torque. Use the correct tools and follow the ball and ball-mount manufacturers' instructions rather than tightening by feel.
Do not weld a standard bolt-on hitch ball to the mount unless that procedure is specifically approved.
Types of Boat Trailer Couplers
The trailer tongue shape, GVWR, braking system, and adjustment requirements determine which coupler style is appropriate.
Straight-Tongue Couplers
A straight-tongue coupler mounts to a rectangular or square trailer tongue. This configuration is common on boat trailers because their frames often use a long central tongue.
The coupler may be:
-
Bolted through the tongue
-
Welded directly to the tongue
-
Installed in an adjustable mounting channel
-
Integrated into a surge-brake actuator
The coupler must match the tongue dimensions and approved attachment method.
Channel-Mount Couplers
A channel-mount coupler bolts into a vertical bracket with several mounting positions. Moving the coupler up or down helps level the trailer behind different tow vehicles.
This adjustability is useful when the tow vehicle's receiver height changes or when a custom trailer requires precise tongue positioning.
Use the specified bolts, spacers, washers, nuts, and hole locations. The channel and coupler must both be rated for the trailer.
A-Frame Couplers
An A-frame coupler attaches where two trailer frame rails meet at the tongue. This design is common on utility and travel trailers but less typical on long, straight-tongue boat trailers.
Do not substitute an A-frame coupler for a straight-tongue model without an engineered frame modification.
Surge-Brake Actuator Couplers
On a hydraulically braked boat trailer, the coupler may be part of a sliding surge actuator.
As the tow vehicle slows, the trailer pushes against the actuator. The actuator telescopes and applies hydraulic pressure to the wheel brakes.
Dexter's surge-actuator guidance emphasizes that the actuator must move freely to respond to braking. Some weight-distribution or sway-control devices can interfere with this movement unless they are specifically designed for surge-brake compatibility.
Replacing a surge-actuator coupler requires more than matching the ball size. Confirm:
-
Trailer GVWR
-
Disc or drum brake compatibility
-
Hydraulic pressure requirements
-
Ball diameter
-
Mounting dimensions
-
Master-cylinder type
-
Reverse-lockout system
-
Breakaway mechanism
-
Corrosion protection
Bolt-On vs Weld-On Couplers
Both mounting methods can be appropriate when included in the trailer design.
Bolt-On Couplers
Potential advantages include:
-
Easier replacement
-
No welding heat applied to the tongue
-
Access to adjustable mounting positions
-
Simple inspection of attachment hardware
The mounting bolts must have the correct diameter, grade, orientation, and torque. Enlarged holes, loose hardware, or corrosion between parts can reduce connection integrity.
Weld-On Couplers
Potential advantages include:
-
Compact installation
-
No exposed mounting bolts
-
Effective integration into a compatible frame design
-
Suitability for certain production configurations
Weld-on installation must be completed using an approved procedure by someone qualified for the trailer material. Welding a steel coupler to an aluminum trailer requires an engineered mounting arrangement because steel cannot simply be fusion-welded directly to aluminum using ordinary methods.
Do not convert from bolt-on to weld-on construction without manufacturer approval.
How to Set the Correct Coupler Height
The loaded trailer should tow at the attitude specified by the manufacturer, commonly level or close to level.
A trailer that sits too high or low at the tongue can affect:
-
Tongue weight
-
Load sharing between tandem axles
-
Surge-brake operation
-
Ground clearance
-
Coupler and ball loading
-
Towing stability
Adjust height using an approved ball mount with the correct rise or drop, or through an adjustable coupler channel when the trailer design permits it.
Never invert a ball mount unless its manufacturer approves use in both rise and drop positions.
Measure the trailer after the boat, motor, fuel, batteries, and equipment are loaded. An empty trailer may sit at a different height.
How to Connect a Boat Trailer Coupler Correctly
Follow the instructions for the specific coupler. A typical connection process includes:
-
Confirm that the ball size matches the coupler.
-
Inspect the ball and coupler for damage or contamination.
-
Position the coupler directly above the ball.
-
Lower the coupler completely onto the ball.
-
Close the latch according to its design.
-
Install the required safety pin or lock.
-
Verify that the coupler is fully captured.
-
Cross and attach the safety chains beneath the tongue.
-
Connect the breakaway cable independently.
-
Connect the trailer wiring.
-
Raise and secure the trailer jack.
-
Test lights and brakes before entering traffic.
Do not force the latch closed. Resistance may indicate an oversized ball, poor alignment, debris, corrosion, or a damaged mechanism.
Dexter advises using the correct hitch ball and inspecting the ball, latch, and chains before every trip. Its actuator instructions also warn against modifying the latch to compensate for wear or an incorrect ball.
Coupler Safety Pins and Locks
Many lever-style couplers use a hole through the latch for a safety pin. The pin helps prevent the latch from opening during travel.
Use the pin type and diameter specified by the coupler manufacturer. A loose nail, undersized bolt, wire clip, or other improvised object is not an appropriate substitute.
Some automatic-latch couplers are certified to operate without a separate safety pin. Follow the instructions for the exact model rather than applying one procedure to every design.
A lock can provide theft resistance, but it must not prevent the coupler from fully closing or interfere with a surge actuator's movement.
Safety Chains and Breakaway Cable
Safety chains provide a secondary connection if the coupler or hitch fails.
The tow-vehicle guidance available through NHTSA recommends crossing the chains beneath the trailer tongue and attaching them to the receiver's designated retainers rather than the bumper.
Chains should have enough slack for full turns without dragging on the road. Hooks should be secured according to their design.
For a trailer with a breakaway system, the breakaway cable should:
-
Attach independently to the tow vehicle
-
Remain separate from the safety chains
-
Have enough length for turns
-
Avoid dragging
-
Activate before the separated trailer reaches the full chain extension, according to manufacturer instructions
The cable should not be looped around the hitch ball or attached to a removable part that could separate with the trailer.
Saltwater and Corrosion Considerations
Boat trailer couplers are exposed to rain, road spray, ramp water, and coastal air. Saltwater can accelerate corrosion in the latch, springs, fasteners, actuator rollers, and safety-chain attachments.
For saltwater use:
-
Choose marine-compatible finishes and materials.
-
Rinse the coupler and tongue with fresh water after launching.
-
Keep drain paths open.
-
Inspect plated surfaces for coating loss.
-
Lubricate only where and with what the manufacturer specifies.
-
Protect electrical and breakaway connections.
-
Inspect the surge-actuator master-cylinder area for contamination or leaks.
Do not apply grease or spray lubricant indiscriminately. Some automatic-latch couplers are designed to operate without lubrication, while other mechanisms require specific service.
When Should a Coupler Be Replaced?
Replace or professionally inspect a coupler when you find:
-
Cracks
-
Bent components
-
Severe corrosion
-
Elongated bolt holes
-
Loose or missing mounting hardware
-
A latch that will not close consistently
-
Excessive movement on the correct ball
-
Worn or broken springs
-
An unreadable capacity or size marking
-
Impact damage
-
Hydraulic leaks from an integrated actuator
Do not tighten an unapproved adjustment merely to remove looseness. Wear may affect the socket, latch, ball, or several components at once.
A damaged coupler should be replaced with a compatible rated assembly rather than repaired with improvised welding or hardware.
Matching a Coupler to an Aluminum Boat Trailer
The coupler should be selected as part of the complete trailer design.

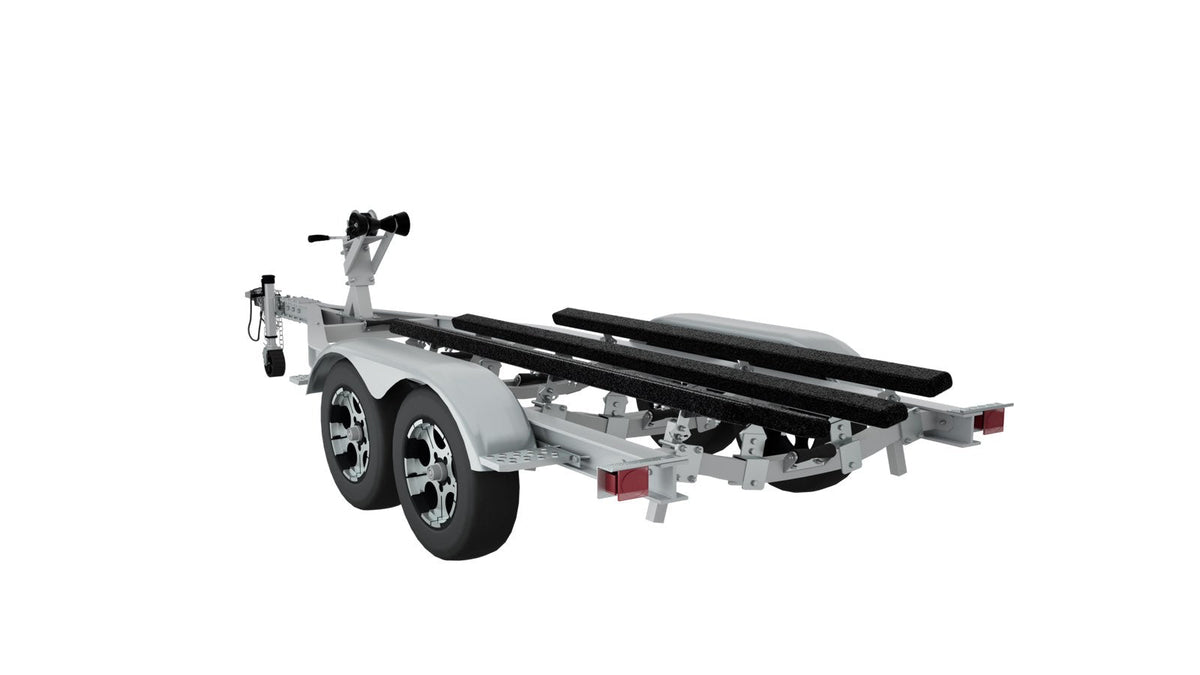

The Black Series Marine aluminum boat trailer has an approximate GVWR of 9,390 pounds and uses a tandem-axle configuration. The final coupler size, rating, brake configuration, and legal road-use specification must be confirmed for the completed trailer.
When ordering, provide:
-
Loaded boat weight
-
Trailer GVWR
-
Expected tongue weight
-
Tow-vehicle receiver height
-
Required hitch ball size
-
Brake type
-
Saltwater or freshwater use
-
Desired adjustable-channel range
-
Storage and turning-clearance requirements
An aluminum utility boat should be evaluated with its motor, fuel, batteries, and equipment when matching it to a trailer connection.
Common Coupler Mistakes
Using a Smaller Ball Because It Fits
An undersized ball can leave enough clearance for the coupler to separate. Use the exact approved size.
Selecting by Ball Size Alone
A correctly sized coupler can still be underrated for the trailer's GVWR.
Ignoring the Ball-Mount Rating
The receiver, ball mount, hitch ball, and coupler must all carry the required trailer and tongue weight.
Forgetting the Safety Pin
If the coupler design requires a safety pin, install it every time.
Restricting a Surge Actuator
Unapproved sway-control or weight-distribution equipment can prevent a surge actuator from telescoping correctly.
Attaching Chains to the Bumper
Use the designated safety-chain points on the receiver or tow vehicle.
Frequently Asked Questions
How do I know what hitch ball size my boat trailer needs?
Read the size stamped or labeled on the coupler or surge actuator. Confirm it in the trailer documentation. Do not measure by appearance alone.
Can I use a 1-7/8-inch coupler on a 2-inch ball?
No. The ball and coupler must be the same approved size unless the coupler manufacturer specifically identifies the model as a compatible multi-fit design.
Does a 2-5/16-inch ball mean the trailer can carry more?
Not by itself. Capacity depends on the ratings of the coupler, ball, ball mount, receiver, trailer, and tow vehicle.
Should a boat trailer coupler be greased?
Follow the coupler manufacturer's maintenance instructions. Some couplers require lubrication at specified points, while others are designed to operate without grease.
Can I replace a surge-brake coupler with a standard coupler?
Not without redesigning or replacing the braking system. A surge actuator is part of the hydraulic brake operation and must remain compatible with the brakes and trailer rating.
Final Takeaway
Never tow based on the assumption that a coupler “looks closed.” Confirm the marked ball size, capacity rating, latch operation, mounting condition, and safety connections before every trip.
To specify the correct coupler, surge actuator, towing height, brake configuration, and trailer capacity for your boat, contact Black Series Marine with your loaded boat weight and tow-vehicle details.
