Boat trailer guide-ons help center a boat as it moves onto the trailer. They are especially useful when wind, current, a steep ramp, or limited visibility makes it difficult to line up the hull with the bunks.
A properly fitted set can also make the empty trailer easier to see while backing down the ramp. That is valuable when the rear crossmember and tail lights disappear below the water before the boat reaches the trailer.
Guide-ons are not structural hull supports, however. They should direct the boat toward the correct loading path without carrying its weight or forcing it into position. Choosing the wrong style or installing it too tightly can scratch the hull, bend brackets, interfere with the fenders, or hide a problem with the trailer’s primary bunk setup.
This guide explains the major types of boat trailer guide-ons, how to select the right height and width, and how to adjust them for an aluminum boat and trailer.
What Boat Trailer Guide-Ons Do
Guide-ons establish a visible and physical reference at the rear or sides of the trailer. As the bow enters the space between them, they help keep the hull aligned while the boat moves toward the bow stop.
They are most helpful when:
-
Loading in a crosswind or moderate current
-
Retrieving a boat without a second person
-
Using a steep ramp
-
Backing an empty trailer in low light
-
Loading onto submerged bunks
-
Towing a flat-bottom or shallow-draft boat
-
Recovering a boat with limited rearward visibility
-
Teaching a new operator how to approach the trailer
Guide-ons do not correct an unsuitable trailer, poor bunk alignment, incorrect tongue weight, or a boat that does not fit between the fenders. Those issues must be resolved first.
Do You Need Guide-Ons?
Not every boat trailer needs them. On a sheltered ramp with shallow water and clearly visible bunks, a properly adjusted trailer may center the boat without additional hardware.
Guide-ons become more valuable when the operator regularly fights one of three conditions.
The Trailer Disappears Underwater
When a trailer is backed too deeply into the water, the rear structure may no longer provide a visible target. Tall posts remain above the surface and show the trailer’s position.
That does not mean deeper is always better. Excessive depth allows the stern to float sideways over the bunks. Guide-ons help, but the first solution is often to pull the trailer slightly forward until the forward portion of the bunks can begin controlling the hull.
Wind or Current Moves the Stern
A light aluminum boat has relatively little mass above the waterline, so wind can move it quickly at low speed. Current can push the stern off center just as the bow reaches the trailer.
Guide-ons reduce the open space available for that movement. They provide a reference for the operator and light contact that directs the hull toward the bunks.
Solo Retrieval Is Difficult
When loading alone, the operator cannot stand beside the trailer and watch both sides of the hull. Guide-ons make alignment easier to judge from the helm and can reduce repeated attempts.
For more help planning the entire process, see our guide to launching and retrieving a boat alone.
Main Types of Boat Trailer Guide-Ons
The right design depends on hull shape, trailer structure, boat weight, ramp conditions, and how much physical guidance is needed.
PVC Post Guide-Ons
PVC post guide-ons are among the most common choices for jon boats, utility boats, skiffs, and other relatively light hulls. A steel support arm mounts to the trailer frame, while a tall PVC sleeve creates a smooth contact surface.
Their main advantages are visibility and simplicity. The posts can remain visible after the trailer lights and bunks are underwater, making the trailer easier to locate from both the tow vehicle and the boat.
PVC posts work best as light directional guides. They should flex or deflect slightly rather than act as rigid barriers.
Look for:
-
Sufficient height above the water
-
UV-resistant PVC sleeves
-
Replaceable end caps
-
Galvanized or corrosion-resistant support arms
-
Brackets that fit the trailer frame
-
Enough horizontal adjustment for the boat’s beam
-
Clearance from lights, fenders, and tie-down points
Tall posts create more leverage on their brackets than short ones. A taller guide is not automatically stronger, so bracket construction matters.
Bunk-Style Guide-Ons
Bunk-style guides use carpeted boards or synthetic surfaces positioned vertically or at an angle beside the hull. Because they provide a longer contact area, they can offer more positive centering than narrow posts.
They may suit heavier boats or ramps where wind and current are frequent concerns. However, the guides must match the hull’s shape and should contact strong, appropriate areas rather than thin or unsupported panels.
Bunk-style guides require careful adjustment. If they are positioned too close together, they may:
-
Trap the hull during launching
-
Rub against chines or strakes
-
Concentrate pressure on the boat
-
Make loading difficult when the trailer is not level
-
Hold the boat off the primary support bunks
The carpet or covering also needs regular inspection. Sand trapped in wet carpet can act like abrasive material against a painted or bare aluminum hull.
Roller Guide-Ons
Roller guides use rotating surfaces to redirect the hull toward the center of the trailer. They can reduce sliding friction and may work well with certain V-bottom boats.
Roller position is critical. A roller placed against the wrong part of the hull can contact a strake, weld, rivet line, transducer, or trim tab. Rollers should rotate freely and should never be expected to carry the boat’s main weight unless they are part of a trailer support system specifically designed for that purpose.
Floating and Specialty Guides
Some products use floats, articulated arms, or keel-centering components. These can be useful for personal watercraft and smaller boats, but every system has limits for hull style and weight.
For example, Taylor Made’s EasyGuide system is designed for boats and personal watercraft within a specified weight range. That type of published limit matters: a guide designed for a lightweight PWC should not be assumed suitable for a large fishing or utility boat.
Specialty systems should be chosen from the manufacturer’s compatibility data, not solely from advertising photos.
Measure the Trailer Before Buying
Most guide-on problems begin with skipped measurements. Before ordering a kit, record the following:
-
Trailer frame width
-
Frame-member height
-
Frame shape, such as box, channel, or I-beam
-
Distance between frame and hull
-
Boat width at the intended contact point
-
Distance from frame to outside of fender
-
Height from mounting point to waterline
-
Tail-light and wiring locations
-
Rear tie-down locations
-
Clearance around bunk brackets and crossmembers
Many guide-on kits use U-bolts around the trailer frame. The supplied U-bolts must fit the frame without crushing, distorting, or interfering with wiring and brake lines.
Do not drill an aluminum trailer frame unless the trailer manufacturer approves the exact location and method. A poorly placed hole can weaken a structural member or create an unprotected area where corrosion begins.

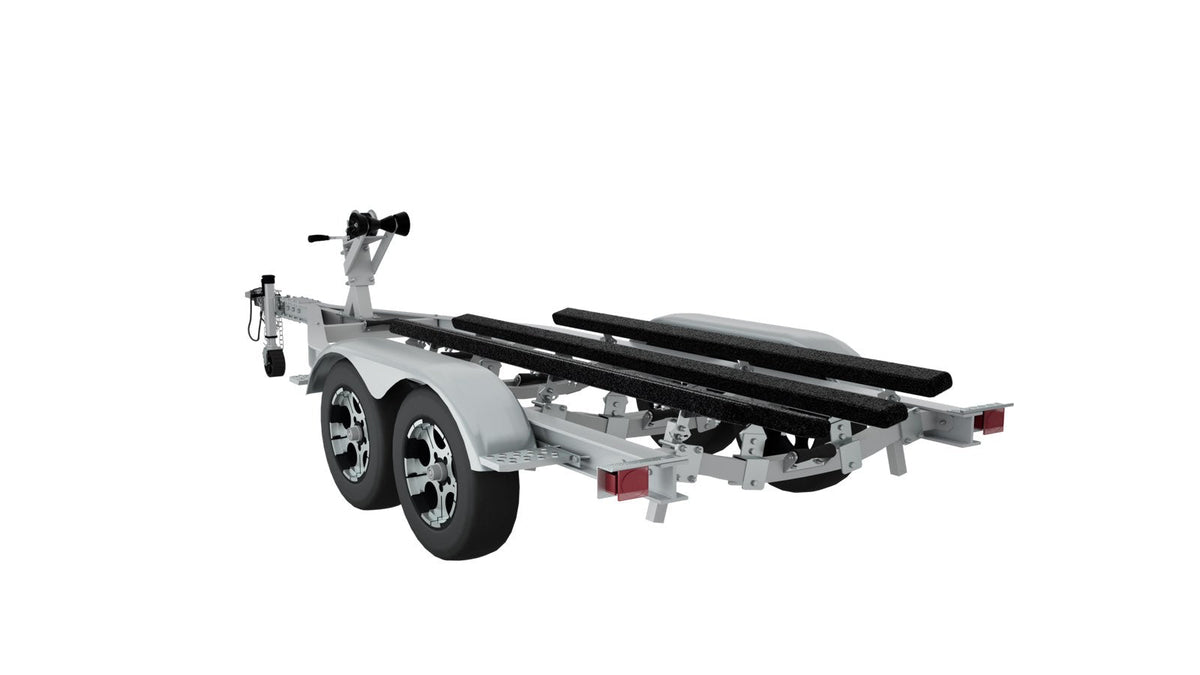

The Black Series Marine aluminum boat trailer uses adjustable bunks, crossmembers, fenders, and a tandem torsion-axle layout. Guide-on compatibility should be checked against the final bunk positions, hull dimensions, lighting, and brake-line routing.
Choose the Correct Guide-On Height
The guide should remain visible when the trailer is backed to its normal loading depth.
Measure from the proposed mounting point to the waterline at the ramp. Then add enough height to keep a useful portion of the post visible from the boat and tow vehicle.
Consider:
-
Typical ramp slope
-
How deeply the trailer must be submerged
-
Boat freeboard
-
Tow-vehicle mirror visibility
-
Tidal changes
-
Waves and moving water
-
Storage-door and garage clearance
A very short guide may disappear underwater. An unnecessarily tall guide may flex excessively, strike docks or branches, and place more force on its mounting bracket.
Select height for actual loading conditions, not for appearance in the driveway.
Set the Correct Width and Clearance
Guide-ons should center the boat without clamping it.
As a starting point, position them with modest, even clearance on both sides of the hull. The correct final gap depends on the guide style, hull shape, mounting height, and how much the components flex.
Too much clearance provides little guidance. Too little can bind the hull, especially if the boat approaches at an angle or the trailer sits unevenly on the ramp.
Check clearance at more than one point. A jon boat may have straight sides near the stern but narrow rapidly toward the bow. A V-hull, chine, or external strake may contact a guide differently as the boat moves forward.
With the boat properly centered on its main bunks:
-
Install both guides loosely.
-
Measure from the hull to each guide.
-
Make the left and right settings symmetrical.
-
Confirm clearance around chines, rivets, welds, and accessories.
-
Move the boat slowly backward and forward to check the full path.
-
Tighten the hardware to the manufacturer’s specification.
-
Recheck the position after the first launch.
The guides should never lift the hull away from the main bunks.
Guide-Ons and Aluminum Hulls
An aluminum hull is durable, but repeated contact with rough hardware can still produce scratches, dents, or localized wear.
Use smooth, non-marring contact surfaces and inspect for exposed bolt ends, cracked PVC, torn carpet, seized rollers, and sharp bracket edges. Fasteners should be oriented so they cannot touch the boat during an angled approach.
Pay particular attention to:
-
Rivet heads
-
Welded seams
-
Chines and strakes
-
Drain fittings
-
Transducers
-
Livewell pickups
-
Trim tabs
-
Painted or coated hull surfaces
If a guide repeatedly contacts one small point, change its position rather than accepting the wear as normal.
Guide-ons should complement the hull support system. Our aluminum boats still need correctly positioned bunks that support appropriate structural areas and extend sufficiently beneath the stern.
Installation Considerations for Aluminum Trailers
Marine guide-on hardware must tolerate water exposure and remain compatible with the trailer frame.
Galvanized steel hardware is common, while some kits use stainless fasteners. Both can create dissimilar-metal contact when mounted directly against aluminum. Saltwater makes that reaction more aggressive.
Follow the trailer and guide-on manufacturers’ recommendations for:
-
Isolation pads or barriers
-
Fastener materials
-
Anti-seize compounds
-
Protective coatings
-
Tightening torque
-
Inspection intervals
Do not overtighten U-bolts until they deform the frame member. The bracket should remain secure without crushing or distorting the aluminum.
After assembly, make sure the installation does not pinch the lighting harness or brake line. Wiring hidden behind a bracket can be damaged even when the bracket itself appears properly installed.
How Deep Should the Trailer Be?
Guide-ons cannot compensate for incorrect trailer depth.
If the trailer is too shallow, the boat may stop before reaching the bow stop, requiring excessive winch force. If it is too deep, the boat may float above the bunks and drift sideways.
A practical starting point is to leave enough of the forward bunk exposed for it to engage and center the hull. The exact position varies with ramp angle, hull shape, bunk height, and trailer geometry.
Load Rite notes in its boat trailer guidance that bunk trailers are best suited to ramps where wind, current, and tide are manageable. Guide-ons can improve alignment in less favorable conditions, but the primary bunk system and loading depth still control how the hull settles.
Mark the correct immersion point once you find it. A visible reference on the fender or guide post can help reproduce the same setup at future launches.
Loading With Guide-Ons
Approach the trailer slowly and as straight as possible. Use steering and low-speed control to place the bow between the guides.
Once the hull enters the guide area:
-
Keep the approach controlled.
-
Avoid using high engine power to force alignment.
-
Stop if the boat contacts a guide heavily.
-
Confirm the stern is centered before final winching.
-
Attach the bow winch and bow safety connection.
-
Pull clear of the ramp before installing transom tie-downs.
Guide-ons are intended to redirect minor misalignment. A hard impact can bend the mounting arms or transfer force into the hull.
Power loading may be prohibited at some ramps and can erode the area behind the launch surface. Follow posted ramp rules and use the winch when appropriate.
Maintenance After Freshwater and Saltwater Use
Inspect guide-ons during normal trailer maintenance and after any unusually difficult retrieval.
Check for:
-
Loose U-bolts and mounting nuts
-
Bent support arms
-
Cracked or missing PVC caps
-
Torn carpet or damaged synthetic covering
-
Rollers that do not rotate
-
Rust beneath coatings
-
Galvanic corrosion around aluminum contact points
-
Contact marks on the hull
-
Pinched wiring or brake lines
After saltwater use, rinse the brackets, fasteners, posts, and surrounding trailer frame with fresh water. Let hollow posts drain instead of sealing water inside them.
Retighten hardware only to the specified value. Repeatedly tightening a bracket without finding why it moved can damage the frame.
Common Guide-On Buying Mistakes
Avoid these frequent errors:
-
Ordering before measuring the trailer frame
-
Choosing posts too short to remain above water
-
Assuming universal brackets fit every frame shape
-
Positioning guides so tightly that they carry hull weight
-
Ignoring fender and tail-light clearance
-
Covering or pinching trailer wiring
-
Letting exposed fasteners face the hull
-
Using carpet that traps sand against aluminum
-
Drilling the frame without manufacturer approval
-
Installing incompatible metals without protection
-
Expecting guides to correct misaligned support bunks
-
Using a guide system beyond its rated boat weight
A carefully selected basic system is more useful than an elaborate system that does not fit the hull or trailer.
Frequently Asked Questions
1. How far should boat trailer guide-ons be from the hull?
They should have enough even clearance to guide the boat without squeezing, supporting, or continuously rubbing the hull. The exact gap depends on hull shape and guide flexibility, so check the complete loading path before final tightening.
2. Are PVC posts or bunk-style guides better?
PVC posts provide excellent visibility and light directional guidance. Bunk-style guides create a longer contact area and may provide stronger centering. Choose according to boat weight, hull shape, and ramp conditions.
3. Can guide-ons damage an aluminum boat?
Yes, if they are too tight, poorly positioned, bent, or fitted with exposed hardware. Use smooth contact surfaces and keep the guides away from rivets, seams, strakes, transducers, and unsupported panels.
4. Should guide-ons touch the boat while towing?
They may sit close to the hull, but they should not function as primary supports or apply continuous side pressure. The boat’s weight and towing loads should be carried by the trailer’s intended bunk or roller system and secured with proper tie-downs.
5. Can I install guide-ons without drilling the trailer?
Many kits use U-bolts or clamp-style brackets and require no drilling. Confirm that the bracket fits the exact frame dimensions and does not interfere with wiring, brake lines, bunks, or fenders.
Final Takeaway
Measure the trailer and hull before buying guide-ons, then adjust them around the boat while it is correctly centered on the bunks. The best setup provides a clear target and corrects minor misalignment without squeezing or carrying the hull.
For help matching a trailer, bunk layout, and loading accessories to your boat’s dimensions and intended ramp conditions, contact Black Series Marine.
