A jon boat battery may power an outboard starter, trolling motor, bilge pump, navigation lights, fish finder, livewell, and charging ports. Those loads do not all use electricity in the same way, which is why choosing a battery by physical size or price alone often produces disappointing results.
An engine starter needs a short burst of high current. A trolling motor draws power steadily for hours. Safety equipment needs reliable power even after other accessories have been operating.
A dependable jon boat battery setup begins with a complete load list, followed by the correct battery type, capacity, wiring, protection, mounting location, and charging system.
List Every Electrical Load First
Before selecting a battery, identify everything that will draw power.
Common loads include:
-
Electric-start outboard
-
Trolling motor
-
Bilge pump
-
Navigation and anchor lights
-
Fish finder
-
Livewell or baitwell pump
-
Deck lighting
-
Marine radio
-
USB charging ports
-
Power trim and tilt
-
Electric winch or shallow-water equipment
Record each device’s voltage and current demand. Also estimate how long it will operate during a normal day.
A fish finder may draw relatively little current but remain on for many hours. A trolling motor can become the largest load in the boat. A bilge pump may operate only briefly, but it must remain available when needed.
Do not size the battery around average use alone. Include enough reserve for wind, current, a longer return trip, and an unexpected delay.
Starting vs. Deep-Cycle Batteries
Starting and deep-cycle batteries are designed for different jobs.
Starting Batteries
A starting battery delivers a large amount of current for a short period to crank an outboard. It is intended to be recharged after the engine starts rather than repeatedly discharged to a low state of charge.
Select a starting battery according to the outboard manufacturer’s required cranking rating, terminal configuration, and battery chemistry.
Deep-Cycle Batteries
A deep-cycle battery is designed to provide power over a longer period and tolerate repeated discharge cycles. It is generally the appropriate type for trolling motors and sustained accessory loads.
Its capacity is commonly described in amp-hours. The rating helps compare stored energy, but usable runtime still depends on discharge rate, battery chemistry, age, temperature, and how deeply the battery can be discharged.
Dual-Purpose Batteries
A dual-purpose battery attempts to combine starting and cycling performance. It can be useful where space and weight limit the boat to one battery.
The tradeoff is that it may not equal a dedicated starting battery for cranking or a dedicated deep-cycle battery for long trolling sessions. Confirm that it satisfies the outboard’s starting requirements and provides enough usable capacity for every accessory.
One Battery or Two?
A single battery keeps a small jon boat lighter and simpler. It may be suitable when the outboard starts manually, electrical loads are modest, or the battery powers only a small trolling motor and basic electronics.
A two-battery system separates critical functions.
A common arrangement uses:
-
One starting battery for the outboard
-
One deep-cycle battery for the trolling motor and house loads
This reduces the chance that a day of trolling leaves too little power to start the engine. It also allows each battery to be selected for its specific job.
The disadvantages are added weight, cost, wiring, charging requirements, and storage space. Small boats must account for that weight carefully.
A battery switch or charging system does not make two batteries interchangeable. The complete layout must be designed for the battery chemistries, outboard charging output, and connected equipment.
Flooded Lead-Acid Batteries
Flooded lead-acid batteries remain widely used because they are familiar, available, and relatively affordable.
They require more maintenance than sealed alternatives. Depending on the design, owners may need to check electrolyte levels and keep the terminals clean.
These batteries must remain upright and be installed in a ventilated location. Charging can produce gas, so they should not be sealed inside an unsuitable airtight compartment.
Advantages include:
-
Broad availability
-
Established charging equipment
-
Familiar performance
-
Competitive initial cost
Disadvantages include:
-
Greater maintenance
-
Potential electrolyte leakage
-
Ventilation requirements
-
Sensitivity to repeated deep discharge
-
Significant weight
Use a secure battery box that can contain minor spills and protect the terminals.
AGM Batteries
AGM batteries are sealed lead-acid batteries that hold their electrolyte in absorbent material. They are generally more resistant to vibration and leakage than conventional flooded batteries.
AGM can be a practical choice for trailer boats because it offers:
-
Low routine maintenance
-
Good vibration resistance
-
No need to add water
-
Flexible mounting options within manufacturer limits
-
Strong starting and deep-cycle models
AGM batteries are still heavy and require a compatible charging profile. A charger designed only for traditional flooded batteries may not charge an AGM battery correctly.
“Maintenance-free” does not mean inspection-free. Terminals, cables, mounting straps, and state of charge still require attention.
Lithium Iron Phosphate Batteries
Lithium iron phosphate, commonly called LiFePO4, offers high usable capacity at substantially lower weight than many lead-acid batteries. That weight reduction can be especially valuable in a small aluminum boat.
Other potential advantages include:
-
Long cycle life
-
Stable voltage during discharge
-
Low self-discharge
-
Fast charging when supported
-
High usable energy for the battery’s size
Lithium systems require careful compatibility checks.
Confirm:
-
The battery includes an appropriate management system.
-
The charger supports the exact battery chemistry.
-
The outboard charging system is compatible.
-
The trolling motor permits the battery’s voltage characteristics.
-
The battery can supply the required starting current if used for cranking.
-
Charging temperature limits match the operating environment.
-
All connected devices tolerate the system voltage.
Do not replace a lead-acid battery with lithium solely because the terminals fit. The charging system, protection devices, cables, and equipment must work together.
Understanding Amp-Hour Capacity
Amp-hours describe how much current a battery can theoretically supply over time under specified test conditions.
A simple estimate divides available amp-hours by the expected current draw. For example, a device drawing five amps from a battery with 50 usable amp-hours has a theoretical runtime of approximately ten hours.
Real operation is less predictable because:
-
Current draw changes with motor speed and equipment use.
-
Wiring and connections create losses.
-
Battery capacity changes with temperature and age.
-
Lead-acid batteries should not routinely be discharged completely.
-
Manufacturers use different rating conditions.
-
Several devices may operate simultaneously.
Treat runtime calculations as planning tools rather than guarantees. Leave reserve capacity instead of designing a system that reaches its expected limit every trip.
Starting Ratings: CCA and MCA
Starting batteries are often rated using cold cranking amps and marine cranking amps.
These ratings are measured under different temperature conditions, so they should not be treated as identical. Use the rating specified by the outboard manufacturer.
Do not reduce the required starting capacity because the boat is normally used in warm weather. The motor’s electronics, starter, cable length, and connection quality still depend on adequate cranking performance.
Battery age also matters. A marginal battery may appear acceptable at home and fail after several hours of accessory use.
Match the Trolling-Motor Voltage
Trolling motors may use 12-, 24-, or 36-volt systems. The boat’s battery bank must match the motor exactly.
Higher-voltage systems commonly use multiple compatible batteries connected in a manufacturer-approved series configuration. Batteries in the same bank should generally match in type, capacity, age, and condition.
Do not mix:
-
Old and new batteries
-
Different capacities
-
Different chemistries
-
Batteries with incompatible charging requirements
A 24-volt trolling motor cannot be operated correctly from a random combination of 12-volt batteries without the required wiring and charging arrangement.
Follow the trolling-motor and battery manufacturers’ diagrams. Incorrect series or parallel wiring can damage equipment and create dangerous current paths.
Battery Placement Affects Boat Handling
Batteries are dense and heavy. Their position can change trim and stability, particularly in a 12- or 14-foot jon boat.
A battery placed beside the outboard and fuel tank adds more stern weight. This can reduce transom freeboard, slow planing, and cause the bow to rise excessively during acceleration.
A battery placed too far forward may increase cable length, voltage drop, and bow weight.
The ideal position is usually:
-
Low in the hull
-
Near the centerline
-
Protected from direct spray
-
Accessible for inspection
-
Clear of fuel-system components
-
Supported by adequate structure
-
Located where its weight improves rather than harms trim
When planning a custom aluminum boat, battery location should be determined alongside the outboard, fuel tank, seats, storage, and floor layout.
Use a Proper Battery Box or Tray
A battery must not slide, tip, or bounce while the boat is operating or being towed.
Use a marine battery box or tray designed for the battery’s dimensions and weight. Secure it to an approved structural surface with a positive hold-down system.
The installation should:
-
Keep the battery upright when required
-
Protect terminals from accidental contact
-
Resist vibration and impact
-
Allow ventilation where needed
-
Provide access for service
-
Keep water from collecting around the battery
-
Prevent tools or gear from falling across the terminals
Do not rely on the battery’s weight to hold it in place. A sudden stop can turn an unsecured battery into a serious hazard.
Cable Size and Voltage Drop
Battery cables must carry the expected current over the complete distance between the battery and equipment.
Longer runs and higher current require larger conductors. Undersized wiring creates voltage drop, heat, weak starter performance, and reduced trolling-motor output.
Select cable size using:
-
Maximum current
-
Total circuit length
-
System voltage
-
Allowable voltage drop
-
Equipment manufacturer requirements
-
Insulation temperature rating
Measure the full positive and negative path, not just the distance from the battery to the device.
Use marine-grade tinned copper conductors and properly crimped terminals. Household wire and lightweight automotive accessory wire are not appropriate substitutes for high-current marine circuits.
Circuit Protection
A battery can release enough current to overheat wiring rapidly if a positive conductor shorts to the hull or another metal component.
Install a correctly rated fuse or circuit breaker close to the battery’s positive connection. The protective device must defend the wire, not merely the connected equipment.
Separate circuits may require individual protection for:
-
Trolling motor
-
Bilge pump
-
Lighting
-
Electronics
-
Accessory panel
-
Charging equipment
Never install a larger fuse to stop repeated opening. A blown fuse or tripped breaker indicates an overload, short circuit, incorrect rating, or equipment problem that must be diagnosed.
Cover exposed positive terminals to prevent accidental contact with tools, anchors, or loose gear.
Do Not Use the Aluminum Hull as a Return Conductor
Run dedicated positive and negative wiring to each electrical circuit. The aluminum hull should not be used as the normal return path.
Current flowing unintentionally through the hull can contribute to corrosion and create difficult electrical faults.
Use a planned negative distribution system with:
-
Dedicated return conductors
-
A suitable negative bus
-
Sealed terminals
-
Protected cable routes
-
Clearly identified circuits
-
Proper bonding only where the system design requires it
If corrosion appears near electrical equipment, investigate for damaged insulation, wet connections, incorrect grounding, and stray current rather than treating the surface alone.
Switches and Distribution Panels
A master battery switch can isolate many circuits when the boat is stored or serviced. It should be rated for the expected current and installed where it remains accessible.
Some safety circuits, such as an automatic bilge pump, may require a separately fused connection that remains active when the main switch is off. The wiring must make that exception clear.
A small distribution panel can simplify accessory wiring and provide individual circuit protection. Label every switch and fuse so a problem can be identified quickly.
Avoid stacking many terminals directly on the battery posts. Crowded connections are harder to protect, inspect, and tighten.
Charging the Battery Correctly
Use a charger designed for the battery chemistry, voltage, and capacity.
An appropriate charger should complete each charging stage without exceeding the battery manufacturer’s limits. Automatic chargers can simplify maintenance, but their selected mode still needs to match the battery.
Before charging:
-
Inspect the battery for damage.
-
Check cables and terminals.
-
Confirm the charger setting.
-
Provide ventilation when required.
-
Keep ignition sources away from flooded batteries.
-
Make sure the battery is not frozen.
-
Follow temperature limits for lithium charging.
-
Keep connections dry and secure.
An onboard charger adds convenience but also adds weight and wiring. Mount it according to its environmental rating and keep its output leads protected from abrasion.
Can the Outboard Recharge Everything?
An outboard charging system may help maintain the starting battery while the engine runs, but its output may not replace the energy used by a trolling motor and multiple accessories.
Charging performance depends on:
-
Alternator or stator output
-
Engine speed
-
Running time
-
Battery state of charge
-
Battery chemistry
-
Connected loads
-
Charging-system design
A short trip back to the ramp may not restore a battery after hours of trolling.
Begin each trip with batteries fully charged rather than relying on the outboard to recover a deeply discharged bank.
Saltwater and Corrosion Protection
Saltwater increases the importance of sealed wiring and clean connections.
After saltwater use:
-
Rinse accessible battery boxes, cable routes, and nearby structure with fresh water.
-
Keep water away from open battery vents and electrical components.
-
Inspect terminals for corrosion.
-
Check cable insulation and heat-shrink seals.
-
Confirm that hold-down hardware remains secure.
-
Let compartments dry before closing them.
Use terminal protection products approved for the battery and electrical system. Do not coat a loose or corroded connection and assume it has been repaired.
On an aluminum boat, inspect areas where battery trays and stainless hardware contact the hull. Use approved isolation methods to limit dissimilar-metal corrosion.
Winter Storage and Long Periods Between Trips
A battery left partially discharged can lose capacity and suffer permanent damage.
Before storage:
-
Fully charge the battery.
-
Clean and dry the case.
-
Inspect for swelling, cracks, or leakage.
-
Disconnect loads as appropriate.
-
Use the manufacturer’s recommended maintenance charger.
-
Protect the terminals.
-
Store within the permitted temperature range.
-
Check state of charge periodically.
Lithium and lead-acid batteries can require different storage charge levels and temperature precautions. Follow the instructions for the exact battery rather than applying one routine to every chemistry.
If the battery remains in the boat, make sure the bilge stays dry and the boat is protected from standing water.
Include Batteries in Boat and Trailer Capacity
Batteries, boxes, chargers, cables, and mounting hardware all count toward the boat’s total load.
A multi-battery trolling system can add substantial weight. That weight affects:
-
Passenger and gear capacity
-
Boat trim
-
Freeboard
-
Acceleration
-
Trailer payload
-
Tongue weight
-
Tow-vehicle load

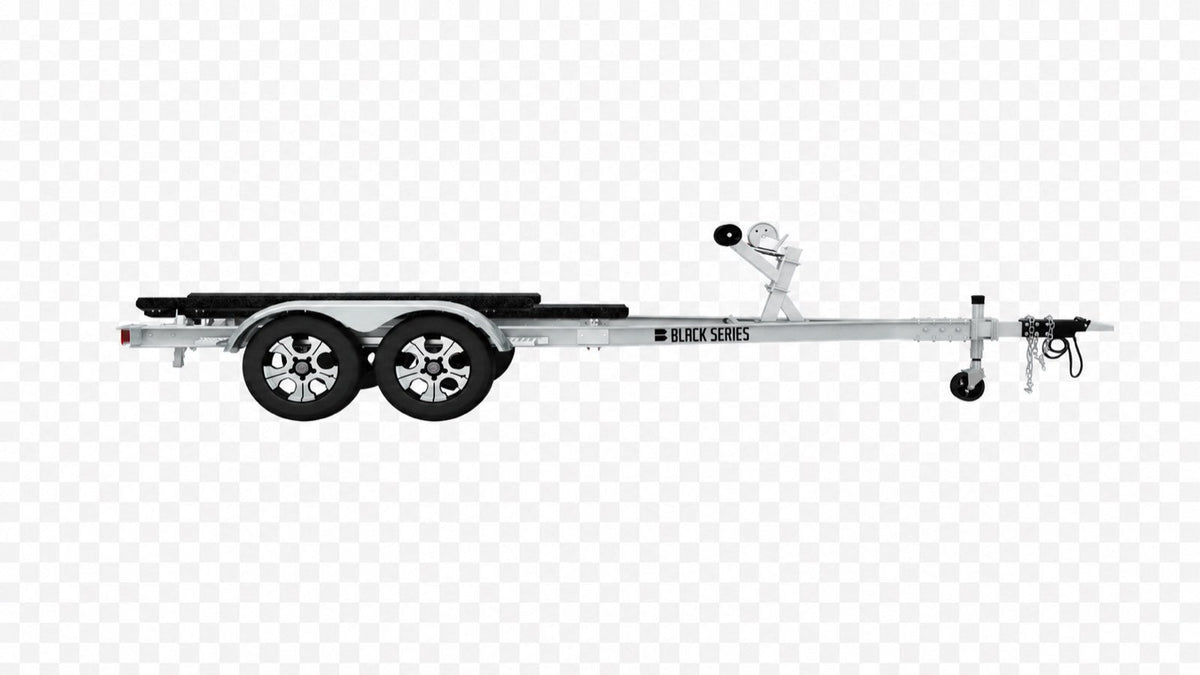

A properly rated aluminum boat trailer must carry the completed boat, outboard, fuel, batteries, flooring, and gear.
After installing or relocating batteries, recheck the boat’s on-water trim and the trailer’s loaded balance.
Pre-Trip Battery Checklist
Before launching, confirm that:
-
The battery case is undamaged.
-
The hold-down is tight.
-
Positive terminals are covered.
-
Cables show no cuts or abrasion.
-
Terminals are clean and tight.
-
Fuses and breakers are correctly rated.
-
The battery is fully charged.
-
The trolling-motor voltage matches the bank.
-
The bilge pump and lights operate.
-
No loose gear can contact the terminals.
-
Battery weight is balanced within the boat.
-
A reliable way to monitor charge is available.
Test critical equipment at home rather than discovering a weak connection after launching.
Common Jon Boat Battery Mistakes
Avoid these frequent errors:
-
Buying by physical size alone
-
Using a starting battery for repeated deep cycling
-
Assuming one battery can support every load
-
Selecting capacity without estimating runtime
-
Mixing battery types in one bank
-
Using an incompatible charger
-
Placing all heavy equipment at the stern
-
Leaving the battery unsecured
-
Using undersized cable
-
Omitting circuit protection
-
Stacking too many terminals on a battery post
-
Using the aluminum hull as the negative return
-
Relying on a short outboard run to recharge a trolling bank
-
Ignoring battery weight in capacity calculations
-
Storing a discharged battery for months
Frequently Asked Questions
What size battery does a jon boat need?
The required size depends on the outboard’s cranking specification, trolling-motor voltage and current, accessory load, expected runtime, and desired reserve. Start with the equipment manufacturers’ requirements rather than boat length alone.
Can one battery run the outboard and trolling motor?
It may be possible on a small setup, but trolling can leave too little reserve to start the outboard. Separate starting and deep-cycle batteries provide better isolation when weight and space permit.
Is AGM or lithium better for a jon boat?
AGM offers familiar charging, low maintenance, and good vibration resistance. Lithium can provide more usable energy at lower weight but requires compatible charging, equipment, temperature limits, and battery management.
Where should the battery be placed?
Place it low, securely mounted, and as close to the centerline as practical. Balance trim, ventilation, service access, cable length, and separation from fuel-system components.
Do I need a fuse between the battery and trolling motor?
High-current circuits require correctly sized protection located near the battery unless the equipment manufacturer specifies an approved alternative. Match the fuse or breaker to the wire and motor requirements.
Final Takeaway
Begin with a complete electrical load list, then choose a battery system that preserves enough reserve for critical equipment. Correct placement and wiring are just as important as battery capacity.
For help planning battery placement, electrical equipment, a custom aluminum boat layout, or the matching trailer capacity, contact Black Series Marine.
